Solar Microgrid

Solar Microgrid

A solar microgrid is a self-contained energy system that combines solar panels, energy storage (like batteries), and smart control systems. It operates independently or alongside the main grid, providing electricity to specific areas or communities. The advanced control systems manage energy production, demand, and storage, ensuring efficient distribution within the microgrid. TKS, a certified Schneider Microgrid and Ecostruxure™ Partner, specializes in advanced energy solutions. If you need high-quality solar microgrid services, TKS is the right choice!
Solar microgrids are used in remote or off-grid locations where the main power grid isn’t accessible. These microgrids supply electricity to small communities, rural areas, and individual buildings. Beyond improving energy access, they have other advantages: less reliance on fossil fuels, reduced greenhouse gas emissions, better resilience during power outages, and cost savings by avoiding extensive grid infrastructure.

Learn more about the Villaya Flex Microgrid solutions

What is a certified Microgid EcoXpert

Experts in delivering microgrid systems for resilience, sustainability and efficiency

Microgrid EcoXperts have proven expertise in sizing, designing and implementing microgrid solutions, managing loads and distributed energy resources. Microgrid solutions provide a cost-effective, reliable and sustainable energy management solution to integrate renewables, energy storage and managed loads for commercial and industrial businesses. Leveraging Schneider Electric’s superior technology, EcoXperts advise their customers on the best options and solution sizing. They design and implement world-class open, dependable, and scalable systems meeting customer requirements and long-term goals and objectives

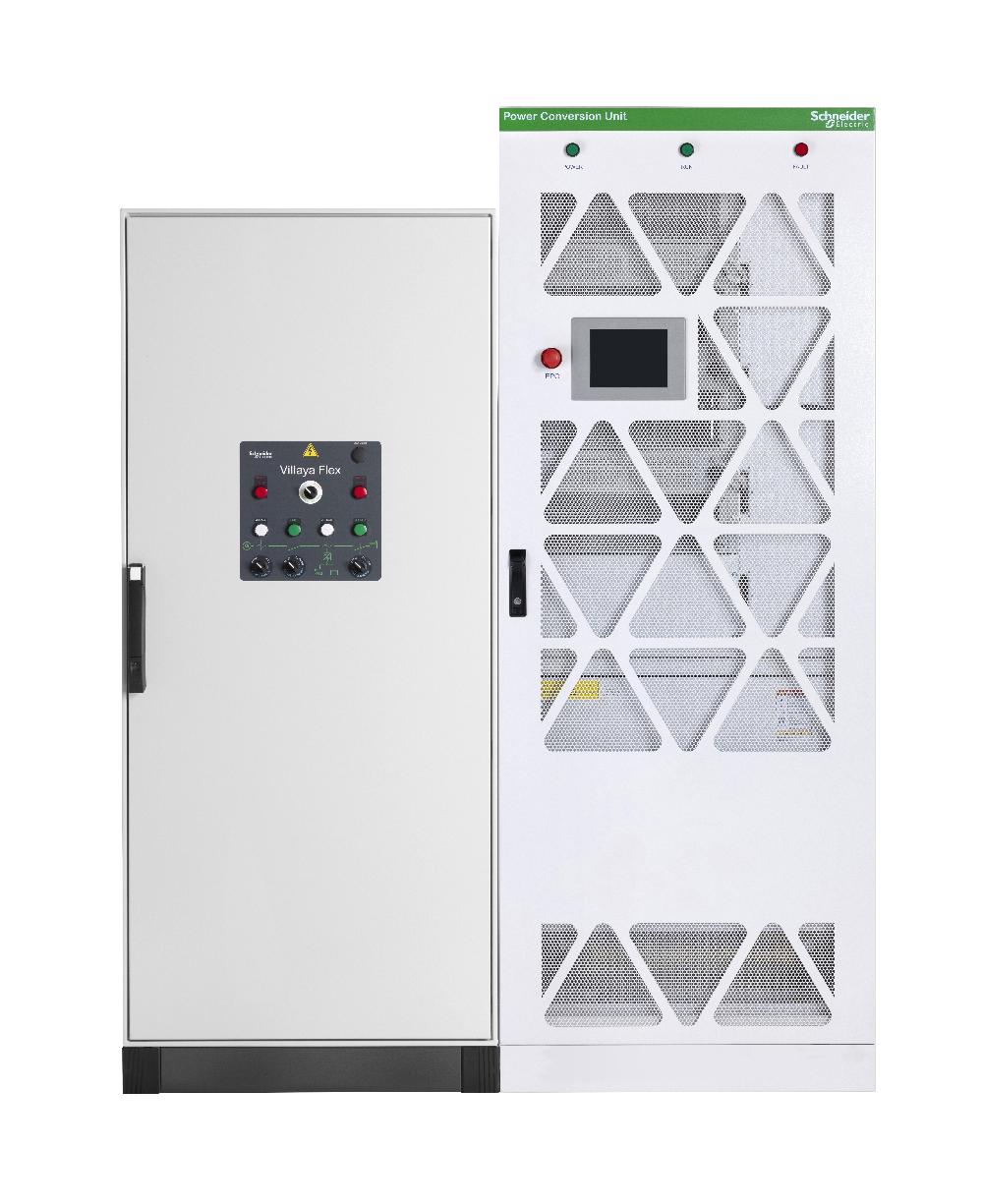

Introducing Villaya Flex

The Villaya Flex is a packaged microgrid solution designed to maximize clean energy use while reducing pollution from diesel generators. It is easy to size, order, commission, operate, and maintain, with scalable battery storage.

Key Benefits of Villaya Flex :

Clean Energy and Reduced Costs:

  • Maximizes solar energy use.
  • Reduces diesel generator fuel consumption.
  • Lowers operational costs with remote monitoring.

Ease of Installation and Maintenance:

  • Pre-tested and validated solutions simplify design and commissioning.
  • Centralized inverter topology reduces installation costs.
  • Standardization makes training and troubleshooting easier.

Community and Economic Benefits:

  • Supports micro-enterprises, schools, hospitals, and agriculture.
  • Provides reliable energy for essential services like vaccine storage.
  • Engages local contractors, boosting local economies and skills.

Sustainability and Resilience:

  • Optimizes renewable resources and battery storage.
  • Minimizes reliance on diesel generators, lowering CO2 emissions.
  • Ensures smooth transitions between energy
    sources, preventing blackouts.

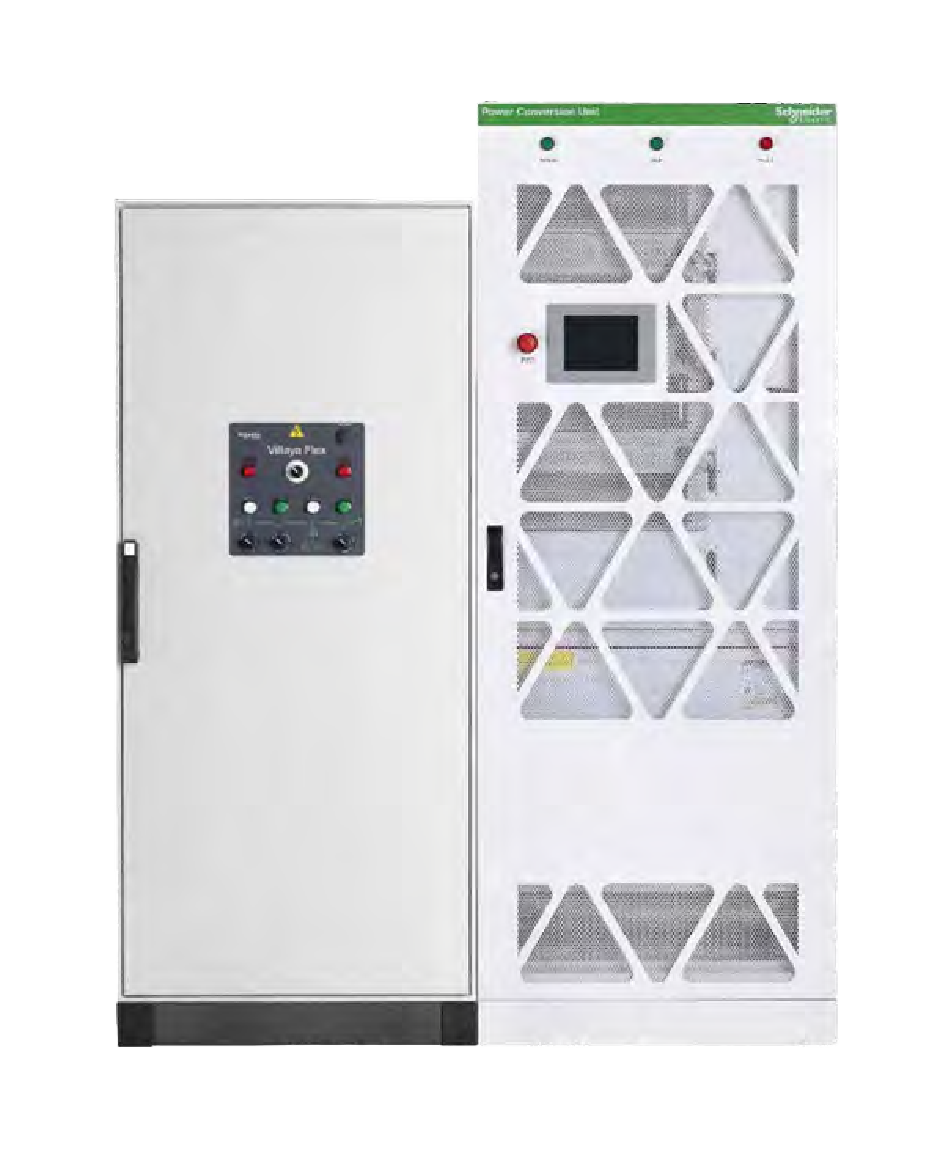

Power Conversion Unit Range

Bi-directional energy storage offer

Features

  • R

    Modular design and wide power range in single cabinet
  • R

    Bi-directional, AC-Coupled Power Conversion System
  • R

    Grid-support functions
  • R

    Flexible derating available
Specifications5
Get In Touch5

Advanced Features of Villaya Flex:

Battery Storage:

Standard modules with a capacity of 5.68 kWh, scalable up to 107.98 kWh. Energy Control Centre: Manages multiple energy sources with intelligent Power Management Systems. Hybrid Power Conversion Unit: Bi-directional unit with integrated MPPT and AC-DC modules.

EcoStruxure™ Software:

Microgrid Advisor for energy production management. Energy Access Expert for demand-side management.

Specifications:

DC Parameters: Battery voltage range 250-520Vdc, max DC current 150A. PV Parameters: Max open circuit voltage 900Vdc, voltage range 520-800Vdc, max DC current 192A. AC Parameters: Output voltage 400V, output power up to 100kVA, frequency 50/60Hz.

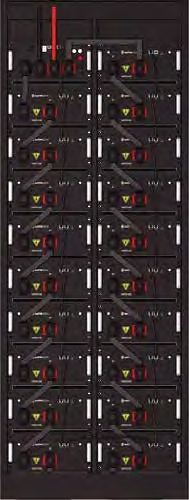

High Voltage Lithium Battery Storage System

The Powercube M2A180 is a high-voltage lithium battery storage system designed by Pylontech to provide reliable energy storage for residential, commercial, and industrial applications. This system ensures efficient energy management and backup power, enhancing the performance of solar energy systems.

Key Features:

  • High Energy Density: The M2A180 offers a high energy density, maximizing storage capacity within a compact footprint.
  • Scalability: The modular design allows for easy expansion, supporting up to 10 modules in parallel, enabling flexibility to meet varying energy demands.
  • Long Lifespan: With a lifespan of over 15 years and more than 6000 charge/discharge cycles, the M2A180 ensures long-term reliability.
  • Safety: The system incorporates advanced safety features, including multiple protection mechanisms for overcharging, over-discharging, and thermal management.
  • High Efficiency: The M2A180 boasts a high round-trip efficiency, ensuring minimal energy loss during the charging and discharging process.
  • Residential: Enhances solar energy systems, providing backup power during outages.
  • Commercial: Optimizes energy use, reducing demand charges and ensuring continuity of operations.
  • Industrial: Supports large-scale energy storage needs, improving energy efficiency and sustainability.

Advantages:

  • Modular and Scalable: Easy to customize based on energy needs, allowing for future expansion.
  • Reliable and Safe: Proven track record of performance and safety, ensuring peace of mind.
  • Cost-Effective: Reduces energy costs by maximizing the use of solar power and minimizing reliance on the grid.

The Powercube M2A180 by Pylontech is an excellent choice for those looking to integrate a high-voltage lithium battery storage system into their solar energy solutions. Its combination of high efficiency, scalability,and safety makes it ideal for a wide range of applications.
